SH-RM40 · OWN MANUFACTURE
Flour Mill Machine Price in Pakistan: from PKR 10 Lac

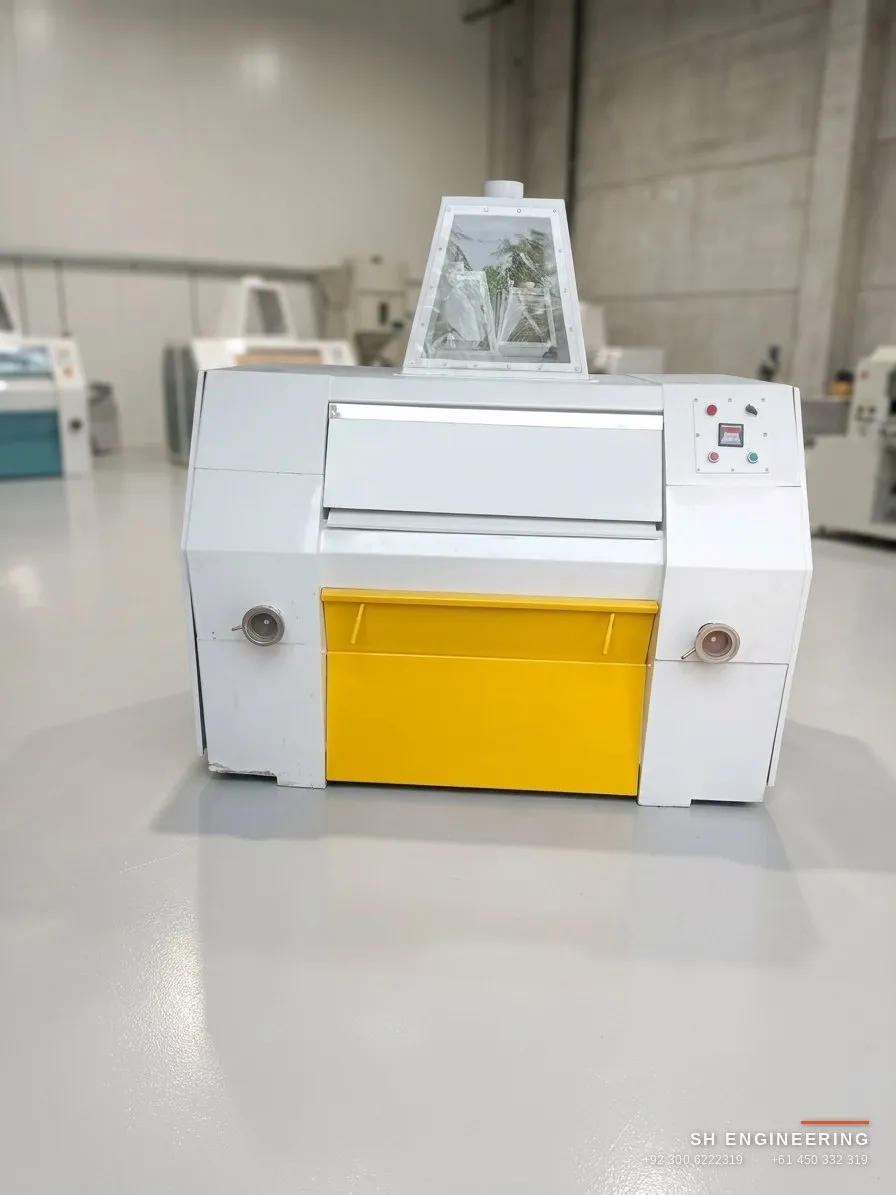

The SH-RM40 is a European-design roller mill, manufactured in our own workshop in Gujrat, Punjab. Built for mills of 50 TPD and up, at a Pakistani fabrication price, and the maker is 3 hours away, not 3 oceans.
Industrial machinery only. The SH-RM40 is built for flour mills of 50 TPD and above. We do not make home atta chakkis or 12/18-inch stone machines — if that is what you need, a local chakki maker will serve you better.
This page in Urdu: آٹا چکی مشین کی قیمت · گندم صاف کرنے والی مشینیں
01Pricing
Prices reviewed monthly
Three price levels.
Pick by your rolls.
The body is the same SH-RM40 in every option. What changes is the rolls, and the rolls are where the grinding actually happens. So that is the honest way to price the machine: by what you put inside it.
If you are searching for a wheat grinding machine at mill scale, this is it. A roller mill is the industrial wheat grinding machine: it grinds between steel rolls over several passages instead of one stone pass. Cleaning machines on the plant equipment page prepare the wheat; this machine grinds it. Built by an engineer with 40 years and seven mills behind him.
Option 1
Bare Body
from PKR 10 lac
For millers who source their own rolls
- Cast-iron / MS fabricated frame & housing
- Imported bearings
- No rolls fitted
- Motor quoted separately
Most Chosen
Option 2
With Pakistani Rolls
from PKR 16 lac
The working miller's standard choice
- Everything in Bare body
- Locally branded rolls fitted & trammed
- Ready to run on arrival
- Chilled or soft roll options
Option 3
With Imported Rolls
from PKR 25 lac
Longest grind life, best break release
- Everything in Bare body
- Turkish, Spanish or Chinese rolls
- Longest grind life
- Best release on break passages
Motors are always quoted separately: 10, 15, 20 or 30 HP, fitted on request. We tell you this up front so no quote surprises you later. Prices reviewed monthly.
02Rolls, In 30 Seconds

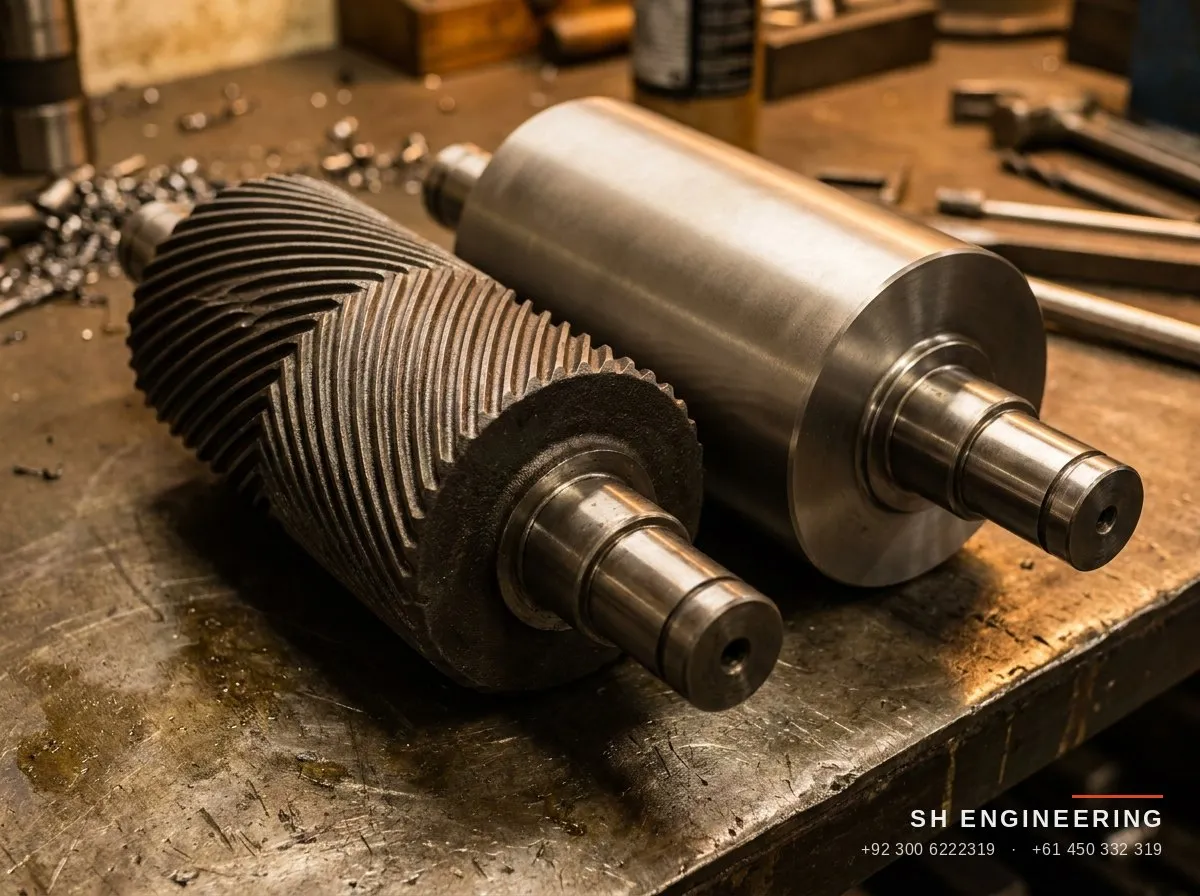

Chilled rolls
vs soft rolls.
A working mill needs both, in the right sequence. Tell us your flow sheet, or send your passage diagram on WhatsApp, and we spec each body correctly. Get it right and you reach what our clients reach: up to 78–80% extraction achieved at client mills on Punjab wheat.
03Datasheet
SH-RM40 · Rev. 2026
Full
specification.
Metric and imperial, the way we print it on every written quote.
| Spec | Metric | Imperial |
|---|---|---|
| Roll size | Ø250 × 1000 mm | Ø9.8 × 39.4 in |
| Rolls per body | 4 | 4 |
| Body width | 1016 mm | 40 in |
| Body construction | Cast iron / MS fabricated frame | |
| Bearings | Imported | |
| Feed | Manual | |
| Throughput | 700 kg/h per body | ~1,540 lb/h |
| Line sizing | 8 bodies ≈ 6 t/h | ≈ 13,200 lb/h |
| Motor | Separate: 10 / 15 / 20 / 30 HP (7.5 / 11 / 15 / 22 kW), fitted on request | |
| Roll options | Chilled (break) or Soft (reduction) | |
| Lead time | Fabrication from 10 days | |
04Proven In Production
References on request
Who runs our
roller mills.

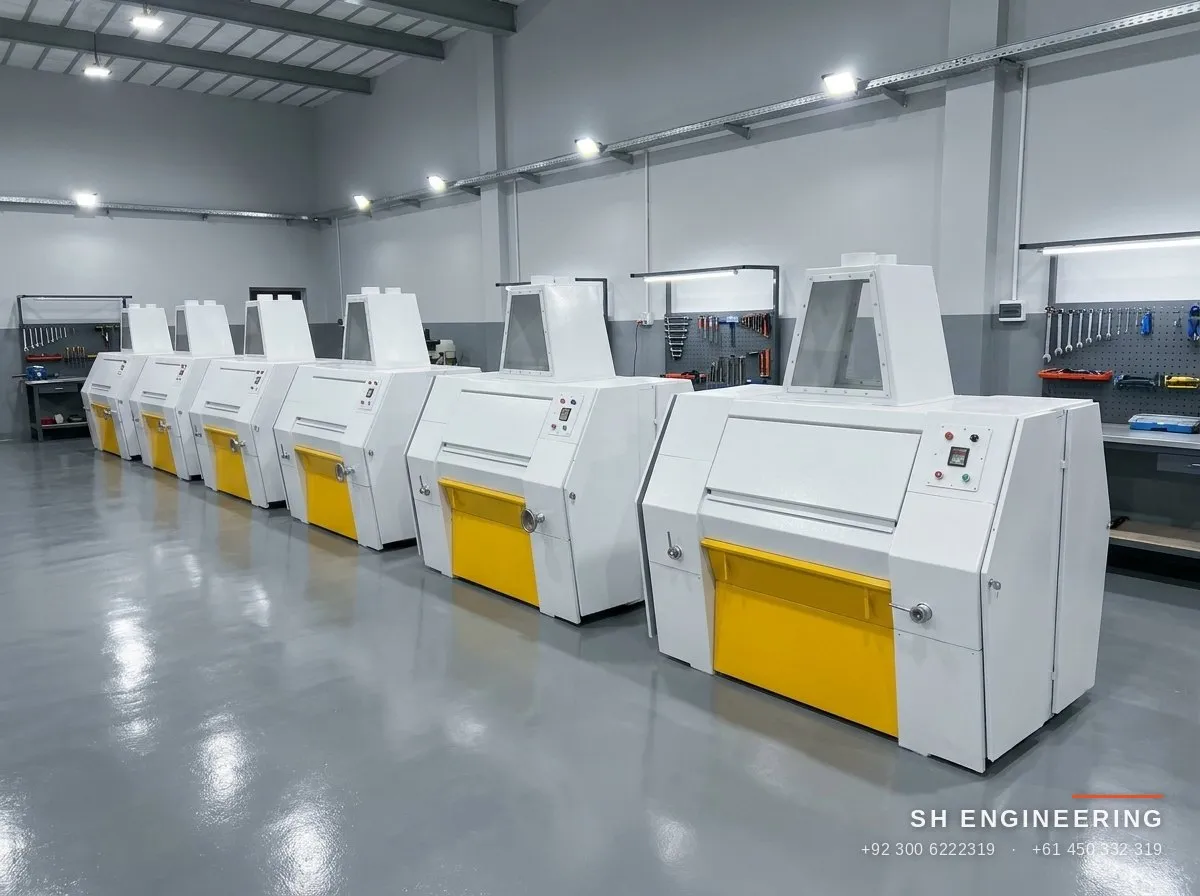

Seven complete mills built over 40 years. Ask any of them how the machines run; client references are shared on request: Burhan Flour Mills (Gujrat), Feroz Flour Mill (Taxila), Sadiq Flour Mills (Sialkot), Gharibsons Flour Mill (Karachi), Wahab and Al Harmain Flour Mills (Lahore).
Warranty (Pakistan)
12-month warranty: parts and on-site servicing, all machines.
Warranty (export)
12-month parts warranty + remote commissioning support; on-site service visits available.
Payment
50% advance at order · 50% before dispatch (ex-works Gujrat) / before shipment (FOB Karachi).
Transport
Ex-works Gujrat; at buyer's cost and risk unless agreed otherwise.
Aftermarket
Spares and roll re-fluting service, quoted on request. It keeps your rolls cutting for years.
The fine print, up front
Every term above is stated in writing on every quote. No surprises later.
05Quick Answers
Roller mill FAQs.
What is a roller flour mill?
A machine that grinds wheat between pairs of rotating steel rolls instead of stones. Gradual reduction over several passages gives higher extraction, cooler flour and consistent quality. It is the standard for any mill of 50 TPD and above.
Is the motor included?
No. Motors (10/15/20/30 HP) are quoted separately and fitted on request.
How many bodies do I need?
Rule of thumb: 700 kg/h per body. An 8-body line handles about 6 t/h. WhatsApp us your target TPD and we size the line.
How fast can you deliver?
Fabrication from 10 days. Confirmed at order against workshop load.
Is this an atta chakki machine?
It is the industrial version. The SH-RM40 is a commercial roller flour mill for plants of 50 TPD and up: the machinery a proper atta chakki plant runs on, not a home or 12/18-inch stone chakki. If you need a domestic chakki, a local maker will serve you better; we build mill-scale machinery only.
Get a written quote
on WhatsApp.
We speak English · اردو. Send your capacity and get specs, price and terms on one page.
